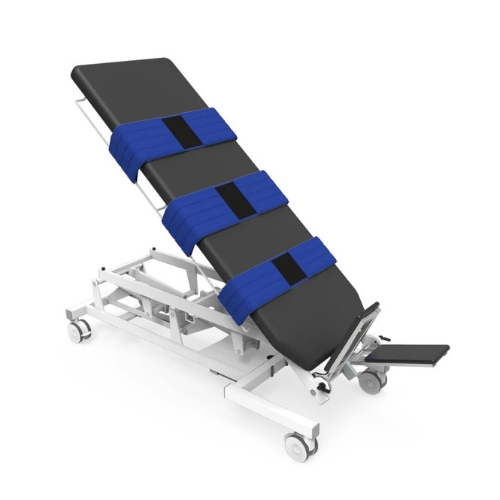

Vertimo Hi-LO
Vertimo is a series of patient tilting tables with electric height and angle adjustment. The tables are equipped with a 2-layer upholstery made of approved materials and are available in a wide range of colour options.
The Vertimo Hi-Lo is a very popular patient tilting table in the field, offering the following features: easy pivot angle and height adjustment for working with neurological patients.
Features:
- 1-section table.
- 2 electric actuators – one ensures smooth tilting; the other one adjusts height.
- Electric height and tilting adjustment with manual remote control with the function of access authorization – authorization is done by a special key placed in the remote control.
- Two-layer padding with upholstery in many colours.
- Powder-coated, very stable steel frame.
- 2 separately adjustable footrests.
- Brackets for the attachment of fastening belts (standard accessories).
- 4 large separately lockable castors (rolling and rotation lock).
- Tilt angle indicator.
- Emergency power supply battery (allows table lowering to min. height and return to horizontal position at power failures).
Technical data:
| Dimensions (Length x Width) [cm]: | 190 x 69 |
| Verticalization angle adjustment [°]: | 0-87 (+3) |
| Height adjustment [cm]: | 53-103 |
| Max. working load [kg]: | 200 (150 in vertical angle) |
| Weight [kg]: | 115 |
| Medical device: |  |
